"Compact and Cost Effective" |
| |
- Innovative design, optimized for cost and performance to support business-critical applications and cloud deployment
- Excellent RAS and outstanding uptime for an improved business environment
- Easy to deploy, integrate, service and manage
|
| |
PRODUCT FEATURES:
- Performance, flexibility, cost and density—perfectly balanced
- Innovative design, optimized for cost and performance to support business-critical applications and cloud deployments
- Excellent RAS and outstanding uptime for an improved business environment
- Easy to deploy, integrate, service and manage
- Comprehensive systems management tools help increase uptime, reduce costs and improve
- productivity with advanced server management capabilities
- Support for GPU, high-IOPS SSDs and 10 GbE for different types of workloads
|
| |
HARDWARE SUMMARY:

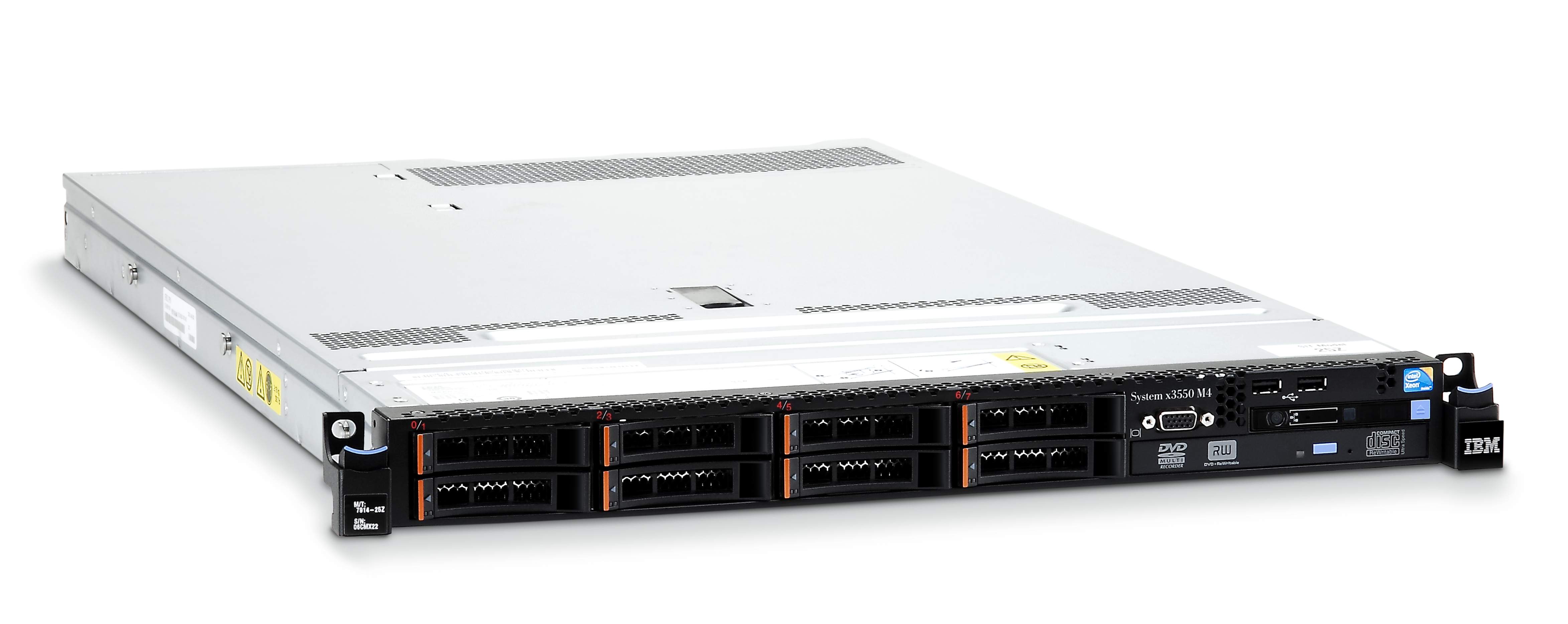

- 1U rack server provides expandability and high performance in a dense form factor
- Up to two Intel Xeon Processor E5-2600 product family
- Up to 768 GB memory and up to 2 DIMMs per channel at 1600 MHz memory speed
- Integrated quad-port Gigabit Ethernet and optional embedded dual-port 10 GbE
- Up to two PCIe 3.0 expansion slots; An optional PCI-X slot is available
- Up to 8 TB of 2.5-inch hot-swap SAS/SATA/SSDs or 9 TB of 3.5-inch hot-swap or simple-swap SAS/SATA HDDs
- Integrated 6 Gbps hardware RAID-0, -1, -10. and optional RAID-5, -50 or -6, -60
- Hot-swap disk/fan/power supply, two fan zones with N+1 fans design, light path diagnostics and Predictive Failure Analysis, better thermal design, balanced efficiency, uptime and serviceability
|
| |
 |
| From Factor/Height |
Rack / 1U |
| Processor (Max) |
Up to two 8-core Intel Xeon E5-2600 series process |
| Cache (max) |
20 MB per processor |
| Memory (max) |
Up to 768 GB via 24 slots (UDIMM/RDIMM/LRDIMM) |
| Media bays |
One optional ODD bay for 2.5" model |
| Expansion Slots |
2 PCIe 3.0 slots, optional 1 PCI-X |
| Disk Bays |
Eight 2.5" or three 3.5" hard disk drives (HDDs)
|
Maximun internal storage |
Up to 8 TB (2.5" model) or 9 TB (3.5" model) SAS/SATA |
| Network interface |
4 × 1 GbE (std.), 2 × 10 GbE embedded adapter (slotless opt.)/Trusted Platform Module |
| Power Supply(std/max) |
1/2 redundant 550 W ac, 750 W ac, or 750 W dc (model dependent) |
| Hot-swap components |
Power supplies, fan modules and hard disk drives |
| USB Ports |
2 (three for 3.5" model) front/4 back/1 internal |
| VGA ports |
1 front/1 back |
| Energy Efficienty Compliance |
Compliant with 80 PLUS® Platinum and ENERGY STAR® (model dependent) |
| RAID support |
Integrated 6 Gbps hardware RAID-0, -1, -10; optional RAID-5, -50 or -6, -60 |
| System Management |
IBM IMM2 with optional FoD remote presence, Predictive Failure Analysis, Diagnostic LEDs, light path diagnostics panel, Automatic Server Restart, IBM Systems Director and Active Energy Manager™ |
| Operating Sysytem Support |
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere |
| Limited Warranty |
3 years |
|
|
|
 |
 |
|
