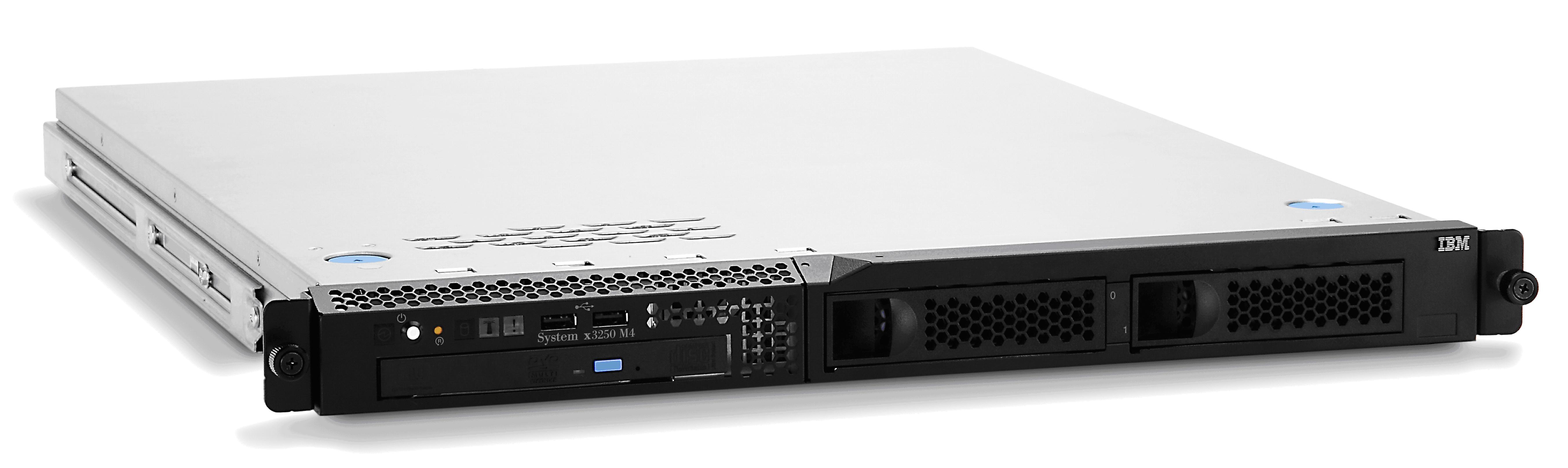

"Compact and Cost Effective" |
| |
Provides next-generation performance in an innovative, compact design.Offers a wide range of configuration options and flexibility for cost-effective growth.Builds on IBM server tradition with integrated data protection and systems management capabilities.Delivers the latest Intel processor technology in an ultra-small, single-socket rack server.
|
| |
PRODUCT FEATURES:
- Innovative technology provides the latest processors and large memory capacity, in a compact 1U footprint
- Power-efficient design helps save on energy costs
- Affordable price point and total cost of ownership
- Integrated tools support easy deployment and management
- IBM tested and certified for quality and reliablity
- Rich security features to meet today's security requirements
|
| |
HARDWARE SUMMARY:
- 22 in. depth, 1U form factor
- Choice of processors—Intel Xeon E3 1200v2 series, Intel Core i3 2100 series, or Intel Pentium series
- DDR-3 ECC server-level memory, up to 1600 MHz; max 32 GB UDIMM support
- Enhancement of PCIe slot competiveness—newly designed dual-port NIC adapter is dedicated in x4 slot, which offers another PCIe slot-free.
- Two 3.5 in. simple-swap SATA or four 2.5 in. hot-swap/simple-swap SAS/SATA HDDs (model dependent/CTO)
- Standard ServeRAID-C100 for IBM System x® supports RAID-0 or -1
- Hardware RAID-0, -1 is standard for SAS models (model dependent)
- Choice between fixed or redundant power supply unit with 80-PLUS certified energy efficiency
|
| |
| |
 |
| From Factor/Height |
Rack / 1U |
| Processor (Max) |
Intel Xeon E3-1200v.2 series (quad-core) up to 3.6 GHz/8 MB/1600 MHz, Intel Core i3 2100 series (dual-core) up to 3.4 GHz/3 MB/1333 MHz, Pentium (dual-core) up to 3.0 GHz/3 MB/1333 MHz |
| Number of processor(std/max) |
1/1
|
| Cache (max) |
8 MB L3 |
| Memory (max) |
1 × 4 GB 1600 MHz DDR-3 UDIMM standard, maximum 32 GB via four DIMM slots |
| Expansion Slots |
One PCIe x8, one PCIe x4 for hardware RAID-0, -1, compact dual-port NIC adapter (via CTO only)
|
| Disk Bays(total/hot-swap) |
Two 3.5 in. simple-swap SATA or four 2.5 in. hot-swap/simple-swap SAS/SATA (simple-swap 2.5 in. via CTO only)
|
Maximun internal storage |
6.0 TB, Optical drive device optional
|
| Network interface |
Dual Gigabit Ethernet |
| Power Supply(std/max) |
300 W (1/1) or redundant 460 W (1/2) |
| Simple-swap components |
Two 3.5 in. simple-swap SATA or four 2.5 in. hot swap/simple-swapSAS/SATA HDDs(model dependent) |
| RAID support |
Simple-swap SATA models - ServeRAID-C100 for IBM System x; hot-swap SAS model hardware RAID-0, -1 is standard (model dependent); optional hardware RAID-5 |
| System Management |
Integrated Management Module 2 (IMM2) with IPMI 2.0 and Serial over LAN, optional upgrade to remote presence via Feature on Demand (FoD); IBM Systems Director, ServerGuide |
| Operating Sysytem Support |
Microsoft Windows Server 2008 R2/ Microsoft Windows Server 2008, Red Hat Linux, SUSE Linux, vSphere 5.0 |
| Limited Warranty |
3 years |
|
|
|
 |
 |
|
