Provides High-Performance and Powerful Coverage |
| |

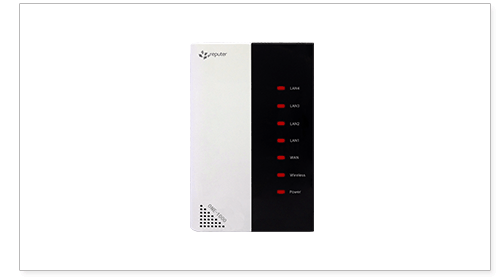

ONE wallplate access point is an innovation mobility solution which provides powerful Wi-Fi for college campuses and Multiple Dwelling Units(MDUs)such as dormitories,apartment complexes,hotels and hospitals.Its modular design and innovative form factor eases installation,snapping into place in minutes instead of hours.Built on operational and Architectural flexibility,ONE provides high-performance and powerful coverage as well as scable dwplyoment options that can lower costs.Modular device ONE can be cabling in the walls wired and wireless making installation faster and easier. |
| |
BENEFITS:
- More than 26% cost reduction in LAN Building
- Easiest expulsion of Ubiquitous Environment
- Effective reduction in resources and power
- Manageability Enhancements
- Solid network implemention
- Small, compact size
PRODUCTS KEY FEATURES:
- QoS(Quality of Service)
- Link speed 10/100/1000 Base-T Ethernet
- PoE(Power over Ethernet)no need to use adaptor
- SNMP(Simple Network Management Protocol)management and control from one place
- Pass0through ports
- Wireless IEEE 802.11a/b/g/n
|
| |
|
| |
 |
| Model |
ONE-1000 |
LAN Ethernet Port |
4Port x 10/100/1000 BASE-T Ethernet (RJ-45), auto-sensing |
| Wireless Interface |
802.11a/ 802.11b / 802.11g / 802.11n |
Uplink LAN Ethernet |
1Port x 10/100/1000 BASE-T Ethernet (RJ-45), auto-sensing |
Power over Ethernet |
48 volts DC 802.3af |
Power Sourcing Equipment |
1 x LAN4 Supply |
SNMP |
v1, v2 |
Adapter |
12 volts Adapter |
Dimension |
85mm(W) * 128mm(L) * 30mm(H) |
Operating Temp. |
0° C to 40° C |
|
|
|
|
|
 |
 |
|
