"Datacenter-grade security appliance for superior multi Software Blades performance"

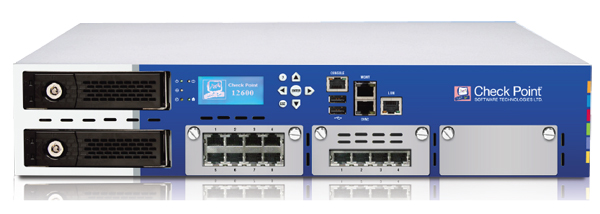

The Check Point 12600 Appliance delivers fast firewall throughput from 15 to 30 Gbps and IPS throughput from 8 to 17 Gbps. Optimized for the Software Blades Architecture, this appliance is designedfor high performance and reliability for even the most demanding enterprise and datacenter network environments.Business continuity and high serviceability are further ensured by redundant hot-swappable power supplies and hard disk drives,and an optional Lights-Out-Management (LOM) module. With these and the high-availability features in the software, any potential service-interrupting failures can be avoided or quickly mitigated.

HIGHLGHTS:

  • Provides superior price performance on key investment criteria such as price-per-port and price-per-GB
  • Either on (1RU) or (2RU) factors it delivers more than 1,800 SecurityPower Units (SPU) of real-world traffic processing power for unsurpassed performance of any security appliance

KEY FEATURES:

  • 1800 SecurityPower™
  • 30 Gbps of firewall throughput
  • 17 Gbps of IPS throughput
  • High port density with up to 26 ports
  • Dual redundant hot swappable power supplies and HDD
  • Optional NICs and LOM

BENEFITS:

  • Datacenter-grade security with attractive prices
  • Flexible network options with high port density for a wide variety of network environments
  • Best performing security appliances in it class
  • Redundant hot-swappable components ensurebusiness continuity
  • Simple deployment and centralized management from anywhere in the network
  • Remote management with Light-Out-Management (LOM)




Performance

Security Power

Up to 1800

Firewall throughput (30Gbps)

Up to 1518 byte UDP

IPS through Default IPS profile

Up to 17 Gbps
Concurrent  Connections 3

Up to 3.5 million

Connections per second

Up to 130,000
Basic Configuration
2 on board 1GbE copper interface
4 X 1 GbE copper interfaces card (for 1of the 3 expansion slots)
8 X 1 GbE copper interfaces card (for 1 of the 3 expansion slots)
6 GB memory
Redundant dual hot swappable Power Supplies
Redundant dual hot swappable 500G Hard Drives
Standard rails
Network Connectivity

1024 VLANs

 256 VLANs per interface

Passive and active link aggregation

 802.3ad

Layer 2 Transparent mode

 Layer 3 Routing mode
Network Expansion Slot Options

4X10/100/1000 Base-T/ Ports

 8X10/100/1000 Base-T/ Ports

2X1000 Base-F SFP Ports 1

4X1000 Base-F SFP Ports

2X10GBase-F SFP + Ports

4X10GBase-F SFP + Ports
Max COnfiguration

Up to

26 X 10/100/1000Base-T ports
Up to 12 X 1000Base-F SFP ports

Up to

12 X 10GBase-F SFP + ports

1

 10 GB memory

LOM card

Included
Operating Environmental Conditions

Temperature

 32° to 104°F / 0°to 40°C

Humidity

 20% to 90% (non-condensing)
Dimensions

Enclosure

 2RU

Standard (WxDxH)

17.24 x 22.13 x 3.46 in

Metric (WxDxH)

438 x 562 x 88 mm

weight

 23.4kg(51.6 lbs.)
Power Requirements

AC Input Voltage

 100-240V

Frequency

47-63 Hz

Power Supply Maximum

2 X 400 W

Power ConsumptionMaximum

 220w

Maximum thermal output

750.6 BTU/Hour (W)
