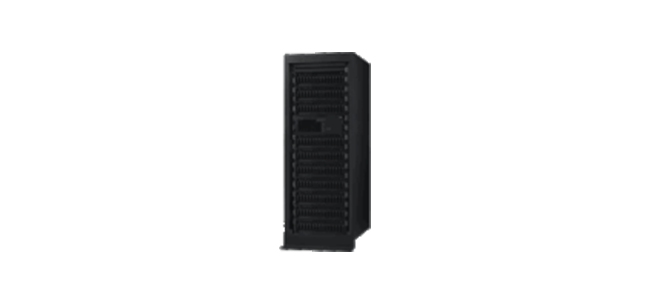

"IBM Sysytem Storage DS5000 Express for Reliability, Availability and Serviceability" |
| |
DS5000 storage system’s architecture delivers industry-leading performance, real reliability, multidimensional scalability and unprecedented investment protection. DS5000 supports IBM AIX and IBM Power Systems T10-PI Data Integrity Initiative. Supports transactional applications such as databases and On Line Transaction Processing (OLTP), throughput-intensive applications such as high-performance computing (HPC) and rich media, and concurrent workloads for consolidation and virtualization. Also supports the most demanding service level agreements (SLAs) for the most common operating systems, including Microsoft Windows, UNIX, Linux and Apple Macintosh. This multidimensional scalability allows the DS5000 series storage system to extend beyond the normal three- to four-year life cycle, protecting your storage investment by delaying, or even eliminating, the expense of migrating data to a new system and allowing you to amortize acquisition costs over extended periods of time. This life cycle longevity enables DS5000 storage systems to continue delivering value long after other systems have been retired. With drive-level encryption, DS5000 series storage systems support affordable data security with no performance penalty. The DS5000 storage system’s multiple replication options, drive level encryption, and persistent cache backup can help ensure that any data in cache is captured and safe in the event of a power outage.
Highlights:
- Provides balanced performance-up to 700,000 IOPs and 6400 MB/s-is well-suited for virtualization and consolidation
- scales up to 448 drives(1.34 PB)using the EXP5000 enclosure and up to 480 drives(1.44 PB)of high-density storage with the EXP5060 enclosure
- Allows for intermixing drive types—Fibre Channel, SAS, SAS NL, SED, SATA and SSD—and host interfaces—Fibre Channel and iSCSI—for investment protection and cost-effective tiered storage
- Supports high availability with hot-swappable components and non-disruptive firmware upgrades
Common Features:
- Efficient, compact 4U packaging designed for 19" rack
- “Pay-as-you-grow” designed to support non-disruptive growth
- Easy-to-use, easy-to-configure management interface able to manage IBM DS3000, IBM DS4000 and IBM DS5000 series storage systems
- Concurrent hardware upgrades and firmware loads support high availability design
- Connectivity to IBM storage area networks (SAN) switches, directors and routers
- Heterogeneous support for the most common operating systems, including Microsoft Windows, UNIX, Linux and Apple Macintosh
Hardware Summary:
- Next-generation enterprise controller technology
- Field-replaceable host interface cards (HIC)—two per controller
- Sixteen 4 Gbs Fibre Channel drive interfaces support up to
- Up to a total of 64 GB cache
- Support for RAID 6, 5, 3, 10, 1, 0
- Two performance levels (base: DS5100 and high: DS5300) with ability
|
|
| |
 |
| Model |
DS5100 -1818-51A, DS5300 -1818-53A |
| RAID Controller |
Dual active |
| cache |
Up to a total of 64 GB cache
Options include 4, 8, 16, 32 GB of cache per controller
Dedicated cache mirroring channels
Persistent cache backup in the event of a power outage
Field-upgradeable |
| Host Interface |
DS5100:
8 × 4/8 Gbps Fibre Channel host interface cards (4 Gbps cards auto-negotiate to 1, 2, and 4 Gbps speeds; 8 Gbps cards auto-negotiate 2, 4 and 8 Gbps speeds)
1 Gbps iSCSI—dual ported (sixteen total host ports)
10 Gbps iSCSI—dual ported (eight total host ports)
DS5300:
Up to 16 × 4/8 Gbps host interface cards (4 Gbps cards auto-negotiate to 1, 2, and 4 Gbps speeds; 8 Gbps cards auto-negotiate 2, 4 and 8 Gbps speeds)
1 Gbps iSCSI—dual ported (16 total host ports)
10 Gbps iSCSI—dual ported (8 total host ports) |
| Drive Interface |
Sixteen 4 Gbps Fibre Channel drive interfaces support up to
28 EXP5000/EXP810
or 8 EXP5060s
|
| Supported Drives with EXP5000 and/or EXP810 Expansion |
4Gbps SATA, 7.2K rpm: 1 TB and 2 TB
4 Gbps Fibre Channel SED :300 GB 15K rpm, 450 GB 15K rpm and 600 GB 15K rpm
6Gbps SAS: 10K rpm : 300 GB, 600 GB and 900 GB
6Gbps SAS SED: 10K rpm : 600 GB
Solid State SAS 2.5 in. drives : 200 GB, 400 GB
SAS-NL 3.5" : 3TB 7.2K rpm
|
| Supported Drives with EXP5060 Expansion |
Supported Drives with EXP5000 |
RAID levels |
0, 1, 3, 5, 6, & 10 |
| Storage partitions |
Support partitions ( 8, 16, 32, 64 or 512) |
Maximun Drives Support |
448 drives maximum with use of 28 EXP5000s or EXP810s, or a mixture of both (not to exceed 28)
480 drives with EXP5060 |
| Fans and Power Supplies |
Dual redundant, hot-swappable |
| Rack Support |
19 in., industry-standard rack |
| Physical Specifications : |
| Height |
17.4 cm (6.87 in.) |
| Width |
45.1 am (17.75 in.) |
| Depth |
61.6 cm (24.25 in.) |
| Weight |
36.8 cm (81.1 lbs) |
| Relative Humidity(No Condensation) |
DS5000 Series Controller Encloser |
EXP5000 Drive Encloser |
|
| Operating Range |
|
| Storage Range |
|
| Maximum dew point |
26°C (79°F) |
26°C (79°F) |
|
| Maximum gradient |
10% per hour |
10% per hour |
|
| Altitude Range |
DS5000 series Controller Enclosure |
EXP5000 Drive Enclosure
|
|
| Operating |
30.5 m (100 ft) below sea level to
3,048 m (10,000 ft) above sea level |
30.5 m (100 ft) below sea level to 3,000 m (9,842 ft) above sealevel |
|
| Storage |
30.5 m (100 ft) below sea level to
3,048 m (10,000 ft) above sea level |
30.5 m (100 ft) below sea level to3,000 m (9,842 ft) above sea level |
|
| Transit |
30.5 m (100 ft) below sea level to
12,000 m (40,000 ft) above sea level |
30.5 m (100 ft) below sea level to 12,000 m (40,000 ft) above sea level |
|
| Heat Dissipation |
DS5000 series Controller Enclosure |
EXP5000 Drive Enclosure |
|
| Btu/Hr |
|
| KVA |
|
| Watts(AC) |
|
| Ampa (240 V ac) |
|
| The tabulated power and heat dissipation values are the maximum measured operating power. |
| Acoustic noise |
DS5000 series Controller Enclosure |
EXP5000 Drive Enclosure |
|
| Sound Power |
|
| Sound Pressure |
|
| Power Input |
DS5000 series Controller Enclosure |
EXP5000 Drive Enclosure |
|
| Nominal Voltage Range |
100 V ac to 240 V ac |
100 V ac to 240 V ac |
|
| Frequency Range |
|
| Max Operating Current |
7.0 A at 100 V ac3.0 A at 240 V ac |
7.0 A at 100 V ac3.0 A at 240 V ac |
|
| IBM SYSTEM STORAGE EXP5060 HIGH DENSITY ENCLOSURE (1818-G1A) |
| Physical Specifications : |
| Height |
177.8 mm (7.0 in.) |
| Width |
482.6 mm (19.0 in.) |
| Depth |
825.5 mm (32.5 in.) |
| Weight |
Drive-ready (without drive modules installed): 56.7 kg (125 lb)Fully configured (60 drive modules installed): 102.1 kg (225 lb) |
| Operating Environment : |
| Temperature (operating) |
10° to 35°C (50° to 95°F) at 0 to 914 m (0 - 3,000 ft)10° to 32°C (50° to 90°F) at 914 to 2,133 m (3,000 - 7,000 ft) |
| Relative humidity (operating) |
8% to 80% |
| Relative humidity (storage) |
5% to 80% |
| Voltage range |
200 - 240 V ac |
| Operating current |
8.62 - 7.19 amperes |
| Power |
1450 watts |
| Frequency |
50/60 Hz |
| Heat dissipation |
4884 BTU per hour |
| Noise level (normal operation) |
6.8 bels |
|
| |
| |
|
 |
 |
|
