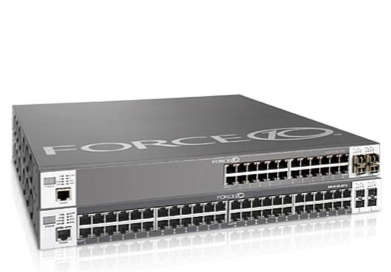

Dell Force10 S-Series S25V and S50V Power-over-Ethernet Switches



S-Series High Performance GbE/10 GbE Switch
The Dell Force10 S25V and S50V bring core-like resiliency in a compact form factor to the network edge, enabling cost-effective scalability. These high performance and low latency Gigabit Ethernet switches deliver the critical functionality that advanced enterprise network edges demand.

Key Application of Dell S25V and S50V
  • Deliver unmatched resiliency and performance, the S25V and S50V enable IT managers to deploy a reliable end-to-end 10GbE solution from core to network edge
  • Line-rate GbE edge switches with 10 GbE uplinks for converged services and high bandwidth desktop applications
  • Cost-effective PoE-enabled 10/100/1000Base-T wiring closet aggregation of VoIP phones, wireless access points, video cameras or other IEEE 802.3af-compliant devices
    •


    KEY FEATURES:

    • The S25V and S50V are fixed configuration switches with PoE that delivers the realiablity and scalability that wiring closets demand.
    • 24 or 48 10/100/1000 ports in a 1-RU form factor
      - 22 or 44 ports 10/100/1000Base-T
      - 4 ports10/100/1000Base-T shared with SFP ports
      - IEEE802.3af complaint PoE that provides up to 15.4 W per port and 790 W per switch
    • Optional module
      - 2-port 10GbE LAN PHY (Pluggable XFP Modules)
      - 2-port 10GbE (CX4)
      - 2-port 12Gbps stacking
      - 1-port 24Gbps stacking
    • Modular FTOS with advance monitoring and serviceability function
    • Suite of security , access control and wiring closet edge features for enterprise networks
    • PowerSmart suite of intelligent power mangement features provides automatic sensing,provisioning and management of PoE power
    • Full complement of standards-based layer2, IPv4 and IPv6 features for unicast and multicast application
    • Switching fabric capacity of up to 288Gbps and forwarding capicity of more than 144Mpps
    • Stack up to eight S25N, S25P, S25V, S50N and S50V switches delivers a scalable and flexible high capicity solution



    L2 Switching

    		 L3 Switching
    • 802.1Q Tagged/Untagged
    • Native VLAN,GVRP,VLAN stacking
    • Multiple tagging support on VLAN stacking trunk ports
    • STP,MSTP,RSTP,PVST
    • LACP,NIC Teaming ,Redundant pairs
    • L2PT and BPDU tunneling
    • User configurable L2PT destination MAC address provider bridge MAC address for xSTP and GVRP
    • FRRP and Deterministic LAG membership
    • Native VLAN on port Channel Interfaces
    • OSPE and OSPF grcceful Restart
    • Multi-process OSPF
    • Static Routers
    • ACRP
    • ECMP
    • VRRP
    • BGP and BGP graceful Restart
    • BFD
    • 31-Bit prefix support on Point-to-point ethernet



    Multicast

    Quality of Service
    • IPv4 PIM-SM, IPv4 PIM-SIM
    • IGMP v1, v2, v3
    • IGMP v1, v2, v3 snooping
    • IGMPv2 to PIM-SSM Mapping
    • IP Muleicasting Polices for IGMP,PIM &Multicast Route limiting
    • RatePolice, Rate shape
    • Policy QoS - Trust dot1p/DSCp
    • Policy Qos - Layer 2/3 classification
    • Policy QoS - Output b/w mgmt, rate shaping
    • Policy QoS - VLAN-based classification
    • QoS policy scalability optimizations
    • Kbps rate shapping, and shapping

    Enterprise Security

    System
    • IPv4/IPv6 ACL Ingress/Egress
    • MAC ACL Ingress/Egress
    • Explicit ACL Rules for IP Fragments
    • Storm Control for Broadcast, Unknown Unicast and Multicast
    • 802.1X with Dynamic VLAN Assignment
    • 802.1X with Guest VLAN and Authentication-Fail VLAN
    • Strong Encryption
    • MAC Learning Limits
    • Private VLAN and Secure DHCP
    • DHCP Snooping & DHCP Relay Agent with Option 82
    • IP Source Address Validation
    • Dynamic ARP Inspection
    • Support for L2 Interfaces
    • Trust Option for Dynamic ARP Inspection
    • Environmental Monitoring
    • Link Dampening
    • TDR
    • PoE supporting Priority& Power of LLDP-MED Enabled Devices
    • RMON
    • sFlow
    • Port Monitoring
    • LAG and Shared LAG Status Tracking

    Enterprise Voice

    Serviceability
    • Power Over Ethernet
    • LLDP and LLDP MED
    • Auto-Negotiation
    • Core Dump Support
    • Command History
    • Hardware Watchdog Timer
    • On-line and Offline Diagnostics
    • Digital Optical Monitoring on Qualified Force10 XFP, SFP & SFP+ modules

    Management
    • Accounting, Authentication, Authorization
    • DHCP Relay Agent& DHCP Server
    • DNS, Radius, Syslog, TACACS+
    • DNS, FTP, SSH
    • Telnet & TFTP
    • SNMP v1, v2, v3 , SNMP set& SCP
    • NTP Client
    • User Configurable CAM Allocations
    • User Configurable Buffer Settings for Control Queues
