"Incrediable value,flexiable management capabilities and energy efficient power saving."

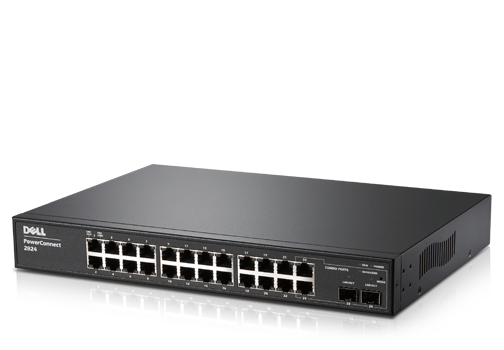

The Dell PowerConnect 2824switch offers incredible value, flexible management capabilities and energy efficient power saving by delivering Web-managed capabilities that Allow users to manage the switch through an intuitive Web interface.
This 24-port version is scalable from small workgroups to highly dense aggregation solutions at the branch office requiring Gigabit Ethernet. In addition, it offers combo SFP ports for connecting the switch to other networking equipment located beyond the 100m distance limitationsor copper cabling. The 24-port switch also saves power by reducing power consumption up to 66 percent oncopper ports with short cables and has energy efficientcapabilities that automatically decrease power on any ports that detect unused or powered down devices saving both energy and money.





KEY FEATURES:
Gigabit Ethernet

  • High-performance Gigabit Ethernet solution delevering full wire-speed switching across all the ports and web-managed features
  • Provides up to two combo SFP ports for fiber connectivity to other LAN equipment in your network

Flexible Management

  • with a push of a button, can easily convert the switch from unmanaged  to a Web-managed switch with the ability to set IP address, configure virtual LANs(VLANs)
  • set Quality of Service (QoS) priorities, and port mirror for intrusion detection and troubleshooting

Performance

  • Delivers an all-Gigabit solution for your networking needs
  • Delivers wire-speed performance at all three Ethernet speeds-10 Mbps,100 Mbps, and 1Gbps
  • And with up to 114Gbps of switch capacity, you can be sure performance is delivered where you need it




Port Attributes
  • 24 10/100/1000BASE-T auto-sensing Gigabit Ethernet switching ports
  • 2 SFP fiber combo ports provide support for 1000BASE-SX and 1000BASE-LX transceivers
  • Power reduction for short cables or inactive connections
  • Auto-negotiation for speed, duplex mode and flow control
  • Auto MDI/MDIX
  • Integrated LEDs for improved visual monitoring and analysis
  • Supports Virtual Cable Diagnostics by Marvell™ and fiber transceiver diagnostics to provide advanced troubleshooting capabilities for your cable infrastructure
Performance

  Switch fabric Capacity up to 48 Gbps
  Forwarding Rate 35.6 Mpps
  Up to 8,000 MAC Address
  2Mbits of Packet Buffer Memory



VLAN

  Supports uo to 64 port-based VLANs

Quality of Service

  • Delivers 4 priority queues per port
  • Honor 802.1p values and honor IP DSCP values
  • Supports strict priority and configurable weighted rounded Robin(WRR)sheduling across queue



Chassis

  42 x 330 x 230.5 mm (H x W x D) (1.65 x 13.0 x 9.1 in.)
  1U, rack-mounting kit included
  Unit Weight: 5.5 lbs
  Fan: 1 (rear)



Standarda Support

  IEEE 802.3ac - VLAN Tagging
  IEEE 802.3ad - Link Aggregation with Static LAG support
  IEEE 802.1W - Rapid Spanning Tree (1)
  IEEE 802.1D - Spanning Tree (1)
  IEEE 802.1Q - Virtual LANs with Port Based VLANs
  IEEE 802.1v - Protocol based VLANs
  IEEE 802.1p - Ethernet Priority with User Provisioning & Mapping
  IEEE 802.1X - Port Authentication
  EEE 802.3x - Flow Control


Environmental Operating Conditions

  100% Lead-Free
  Operating Temperature: 0º C to 45º C (32º F to 113º F)
  Storage Temperature: -20º C to 70º C (-4º F to 158º F)
  Operating Relative Humidity: 10% to 90% non-condensing
  Storage Relative Humidity: 10% to 95% non-condensing
Power   1.0A @ 100V
  95.5 BTU/hr
