"Incrediable value,flexiable management capabilities and energy efficient power saving."

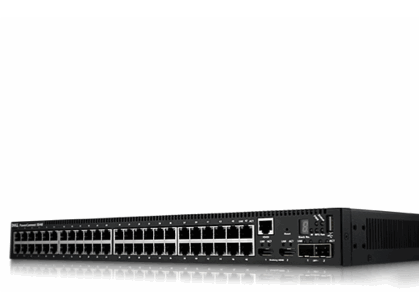

Help deliver flexible, energy-conscious gigabit switching with PowerConnect™ 5548, featuring robust security, stacking and management. With 48 wire-speed Gigabit Ethernet (GbE) ports available for campus switching, the 5548 scales with your network as it grows.


HIGHLIGHTS:

High throughput: Supports wire-speed performance with up to 48 ports of GbE and two 10GbE uplink ports for 40Gbps of bandwidth.

Energy conscious: Energy Efficient Ethernet (EEE)architectue helps reduce power to ports in sleep mode or remode or remove power to inactive ports.

Scalable: Manages up to 8 wire-speed switches as a single unit.


KEY FEATURES:

Rapid Deployment and Configuration

  • Help save time and deployment costs by simplifying your network rollout
  • Automatically assing switch configuration and IP address via DHCP or local USB during initial rollout
  • Can configure up to eight switches in a stack without pressing a single key or setting up a console connection

Robust Management

  • An industry-standard CLI
  • Remote management using an embedded web server
  • Support for SNMP-based management applications


VoIP Functionality

  • Help ensure that VoIP traffic is prioritized in the event of resource contention through the voice VLAN function
  • LLDP-Med provides detailed network topology records, emergency call service via IP phone location information and troubleshooting data


Automated Security
Select from multiple security levels,with options that include such industry-standard features as:

  • SSH/SSL management encryption
  • DHCP snooping
  • IP and MAC -based ACLs
  • Access password protection
  • Port-based MAC address alert and lock-down

High level security is provided through:

  • RADIUS remote authentication for switch management access
  • 802.1x authentication and TACACS+
  • Management access filtering via management access profiles


Performance
  • 48 10/100/1000BASE-T auto-sensing Gigabit Ethernet switching ports
  • 2 SFP+(10Gb/1Gb) ports
  • 2 Stacking Ports (HDMI) – 10Gb per port, full duplex, 40Gb total per switch
  • USB Port – Allows for file import/export locally
  • Auto-negotiation for speed, duplex mode and flow control
  • Auto MDI/MDIX
  • Port mirroring
  • Broadcast storm control
  • Port profile support
Availability
  • Spanning Tree (IEEE 802.1D) Multiple Spanning Tree(MSTP) and Rapid Spanning Tree (IEEE 802.1W) with Fast Link Support
  • Dual Image support
  • External redundant power support with PowerConnect RPS-720
  • Cable diagnostics via Cable Tester
Port Attributes

  Switch fabric Capacity up to176.0 Gbps
  Forwarding Rate 100.2 Mpps
  Up to 16,000 MAC Addresses


VLAN

  VLAN support for tagging and port-based as per IEEE 802.1Q; protocol-based VLANs
  Up to 4000 VLANs supported
  Dynamic VLAN with GVRP support
  Protocol based VLANs
  802.1x Auto VLAN
Quality of Service

  • Layer 2 Trusted Mode (IEEE 802.1p tagging)
  • Layer 3 Trusted Mode (DSCP)
  • 8 Priority Queues per Port
  • RED/WRED
  • Adjustable Weighted-Round-Robin (WRR) and Strict Queue Scheduling


Chassis

440 x 255 x 432 mm (W x D x H)
17.32 x 10.03 x 1.7 in (W x D x H)
1U, rack-mounting kit included
Approximate weight: 3.33 kg / 7.35 lb


Standarda Support

IEEE 802.1D
IEEE 802.1Q
IEEE 802.1p
IEEE 802.1w
IEEE 802.1x
IEEE 802.2
IEEE 802.3
IEEE 802.3I
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.ab
IEEE 802.3ac
IEEE 802.3ad
IEEE 802.1v

Environmental Operating Conditions

Operating Temperature: 0º C to 40º C
Storage Temperature: -20º C to 70º C
Operating Relative Humidity: 10% to 90% non-condensing
Peripherals Dell SFP Transceivers (SX, LX, Copper 1Gb)
Dell SFP+ Transceivers (SR, LR, LRM, twinax)
RPS-720 Redundant Power Supply
