"An economical, high performance, reliable, and energy efficient server"

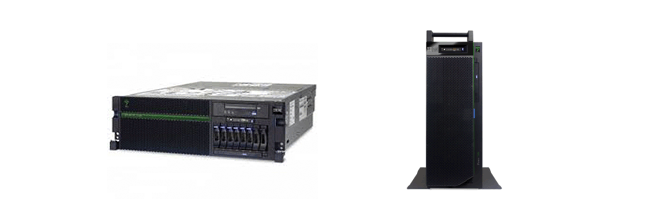

The Power 740 Express is a one- or two-socket server that supports up to 16 POWER7 cores in a flexible 4U rack-optimized form factor. The Power 740 offers large memory capacity, outstanding performance of the POWER7 processor, PowerVM and workload-optimizing capabilities to enable companies to get the most out of their systems by increasing utilization and performance while helping to reduce infrastructure and energy costs. The new Power 740 Express Model 8205-E6C adds increased memory capacity and additional high bandwidth Generation 2 PCI-Express slots to provide even greater performance capabilities.


HIGHLIGHTS:

  • For small-to-midsize database servers
  • For consolidation of UNIX, IBM i and x86 Linux workloads and virtualized application servers
    Features Benefits
    Leadership POWER7 performance

    Access data faster and improve response time.
    Do more work with fewer servers and benefit from infrastructure cost savings from a reduction in the number of servers and software licenses.

    Intelligent Threads Optimize performance by selecting the suitable threading mode for your application.
    Active Memory Expansion Enables more work to be done with existing server.
    PowerVM Express Edition (optional) Easily add workloads as your business grows Utilize the full capability of the system to reduce infrastructure costs by consolidating workloads running the AIX, IBM i or Linux operating Provides ability to handle unexpected workload peaks by sharing resources
    RAS Features Keep applications up and running so you can focus on growing your business.
    Light Path Diagnostics Easily and quickly diagnose hardware problems reducing service time.
    IBM Systems Director Active Energy Manager with EnergyScale Technology Dramatically and dynamically improve energy efficiency and lower energy costs with innovative energy management capabilities.
    Enables businesses to continue operations when energy is limited.


Configuration Options
POWER7 Processor modules-one per system 3.3GHz 4 Cores
3.7GHz 4 Cores
3.7GHz 6 Cores
3.55GHz 8 Cores
Sockets Single or Dual Socket
L2 cache 256 KB per core
L3 cache

4 MB per core
Memory

Single Socket : 8GB – 256GB의 DDR3, Active Memory Expansion
Dual Socket : 8GB – 512GB의 DDR3, Active Memory Expansion
Solid-state Drives(SSD)

Up to eight SFF drives
Disk Drives

Up to 8 SFF SSD (Solid State Drive) and SFF SAS HDD (Hard Disk Drive) support

Disk Capacity

Up to 4.8TB (600GB 10krpm SFF SAS HDD x 8)

Media Bays

Slimline for DVD-RAM
Half height for tape drive or removable disk

I/O

 Model 8205-E6C Model
PCI Adapter slots PCIe Gen2 8x 5 + PCIe Gen2 LP 4 (Option)
Standard Ethernet 10/100/1,000 Mbps 2ports
Integrated SAS controller One controller for SAS DASD/SSD and DVD-RAM
Optional protected 175 MB cache with RAID 5, 6
High-Performance PCI adapters

4-port 8Gbps FC
2-port 10GbE
2-port 10Gbps FCoE（Fibre Channel over Ethernet）
2-port Infiniband QDR
Other Integrated ports Three USB, two HMC, two system ports
GX slots Two GX 2
I/O Expansion (Optional) Up to 4 PCIe 12X I/O drawers – 40 PCIe slots
Up to 8 PCI-X DDR 12X I/O drawers – 48 PCIx slots
Up to 416 SFF bays
Other PCI adapters supported include SAS, SCSI, WAN/Async, USB, Crypto, iSCSI
PowerVM™ technologies
POWER Hypervisor™

LPAR, Dynamic LPAR, Virtual LAN (Memory-to-memory interpartition communication)
PowerVM Express Edition (optional) Up to three partitions on the server; virtualized disk and optical devices (VIOS); Integrated Virtualization Manager (IVM); Shared Dedicated Capacity
PowerVM Standard Edition (optional) PowerVM Express Edition plus Micro-Partitioning™ with up to 10 micropartitions per processor; Multiple Shared Processor Pools
PowerVM Enterprise Edition (optional) PowerVM Standard Edition plus Live Partition Mobility (LPM) and Active Memory Sharing (AMS)
RAS features ECC memory with Chipkill
Processor Instruction Retry
Alternate Processor Recovery
Service processor with fault monitoring
Hot-plug disk bays
Hot-plug and redundant power supplies and cooling fans
Dynamic component Deallocation
Operating systems3 AIX
IBM i
Linux for POWER®
High availability IBM PowerHA™ family
Power requirements 200 V to 240 V ac, single phase
System dimensions Rack Drawer: 6.9 in. H × 17.3 in. W × 24.0 in. D (173 mm × 440 mm × 610 mm); weight 87 lbs (39.5 kg)4
Warranty 3 years
