Intelligent Switching Hub Integrated (UCS-R100) |
| |

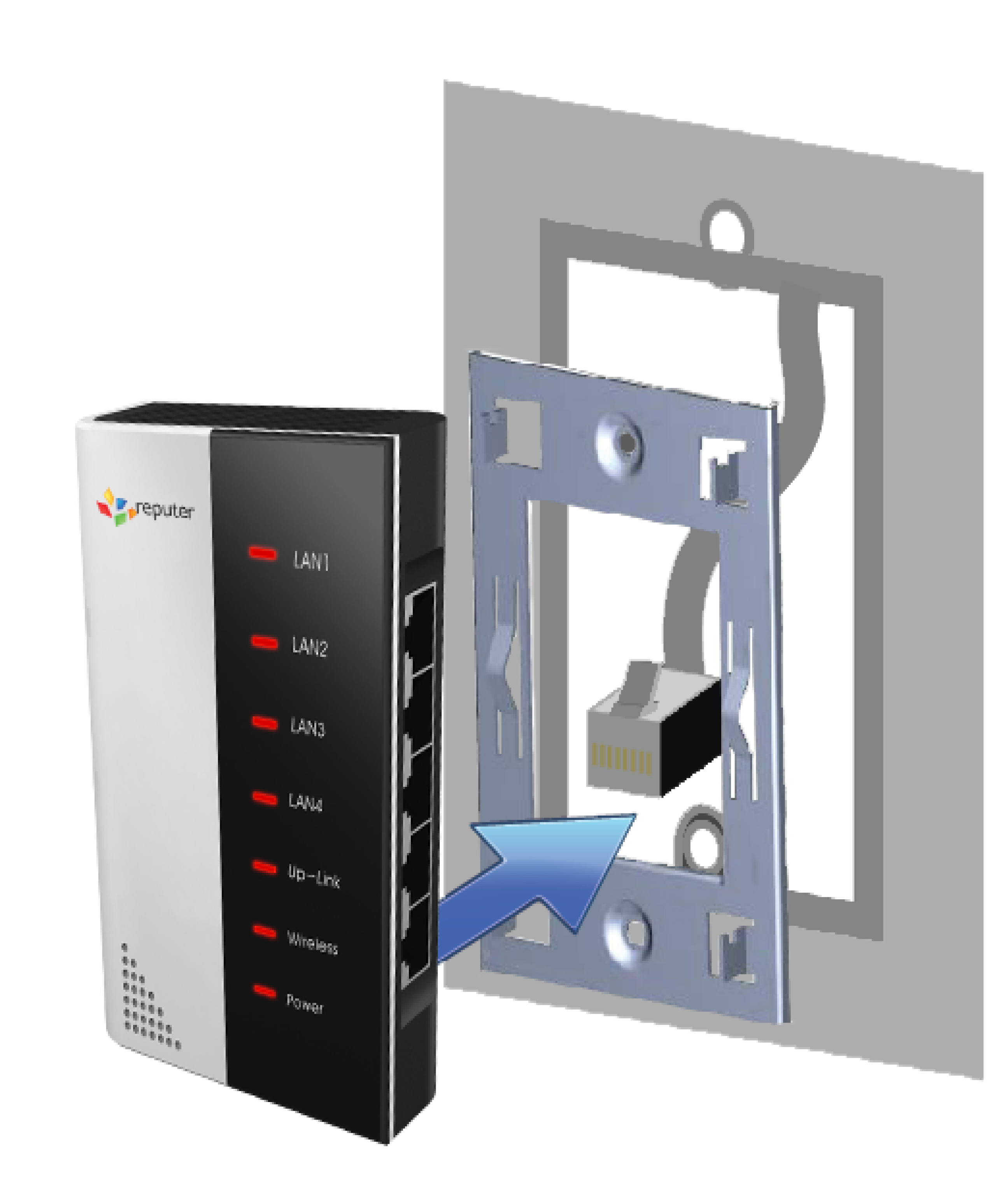

UCS-R100 is a device (IT Device) for the first time which can be connected to the point, wired or wirless by Switching hub integrated.The user access point by."The entire network system can increase design innovation network through the way of Smart Communication Device the UC(Unified Communication)by cutting off a large building cost." |
| |
BENEFITS:
- More than 26% cost reduction in LAN Building
- Easiest expulsion of Ubiquitous Environment
- Effective reduction in resources and power
- Manageability Enhancements
- Solid network implemention
- Small, compact size
PRODUCTS KEY FEATURES:
- QoS(Quality of Service)
- Link speed 10/100 Base-T Ethernet
- PoE(Power over Ethernet)no need to use adaptor
- SNMP(Simple Network Management Protocol)management and control from one place
- Pass0through ports
- Wireless IEEE 802.11b/g/n
|
| |
 |
| Model |
UCS-R100 |
LAN Ethernet Port |
4Port x 10/100BASE-T Ethernet (RJ-45), auto-sensing |
| Wireless Interface |
802.11b / 802.11g / 802.11n |
Uplink LAN Ethernet |
1Port x 10/100BASE-T Ethernet (RJ-45), auto-sensing |
Power over Ethernet |
48 volts DC 802.3af |
SNMP |
v1, v2 |
Adapter |
12 volts Adapter |
Dimension |
75mm(W) * 128mm(L) * 35mm(H) |
Operating Temp. |
0° C to 40° C |
|
|
